Detect light leakage on your monitor with testing patterns.
Test in a completely dark room for accurate results
Set your screen brightness to maximum
Clean your screen to remove dust and smudges
Use fullscreen mode when prompted
Understanding the difference between backlight bleed, IPS glow, and screen clouding helps you assess whether your display has a defect or normal characteristics.
Backlight bleed appears as bright patches or glowing areas at the edges or corners of your LCD/LED display, visible against dark backgrounds. It happens when light from the backlight panel leaks around the edges of the screen due to uneven pressure on the panel or improper assembly.
You'll spot backlight bleed most easily on pure black screens in a dark room with brightness set to maximum. The light leakage is constant—it doesn't change based on your viewing angle. Common locations are the four corners and along the edges, though it can appear anywhere pressure is uneven.
Backlight bleed is a mechanical issue related to panel assembly, not a fundamental technology limitation. IPS panels are more susceptible than VA or TN panels due to their construction. Minimal bleed (barely visible glow at corners) is expected on most IPS monitors, while severe bleed that creates large bright spots is warranty-worthy.
IPS glow is a normal characteristic of IPS panel technology, not a defect. It appears as a subtle whitish or colored glow that's most visible when viewing dark content from an angle. Unlike backlight bleed, IPS glow changes dramatically based on your viewing position—shift your head or change the monitor angle, and the glow moves or disappears.
The glow results from how IPS panels control light through liquid crystals. When viewing from off-center angles, the panel's ability to block light diminishes, creating the glow effect. This is the trade-off for IPS panels' superior color accuracy and wide viewing angles compared to VA or TN panels.
Every IPS monitor exhibits some degree of IPS glow—it's inherent to the technology. The intensity varies by panel quality and manufacturing, but it's not fixable since it's a fundamental physical property. Professional photographers and designers accept IPS glow as the cost of getting accurate colors and consistent viewing angles.
Screen clouding (also called dirty screen effect or DSE) appears as uneven brightness across the display surface, creating patches or clouds of lighter and darker areas. Unlike backlight bleed which concentrates at edges, clouding affects the center portions of the screen and becomes obvious on uniform gray or white backgrounds.
Clouding results from backlight uniformity issues—the LEDs don't illuminate the panel evenly, or the diffuser layers don't spread light consistently. It's particularly noticeable during scrolling or when viewing content with large areas of solid color, like sports broadcasts with green fields or blue skies.
Some clouding is normal on budget displays, but severe clouding that creates visible patches during everyday use indicates poor quality control or defective diffuser layers. Unlike backlight bleed which is edge-specific, clouding spans the entire screen and can't be fixed through bezel adjustments—it typically requires panel replacement.
| Type | Appearance | Cause | Viewing Angle Effect | Can Be Fixed |
|---|---|---|---|---|
| Backlight Bleed | Bright spots at edges/corners | Uneven panel pressure, assembly issues | Constant from all angles | Sometimes (risky DIY, 30-50%) |
| IPS Glow | Whitish glow from corners when viewed at angle | IPS panel technology characteristic | Changes with viewing angle | No (inherent to IPS) |
| Clouding | Uneven brightness across center of screen | Backlight uniformity issues, diffuser problems | Constant from all angles | Rarely (requires panel replacement) |

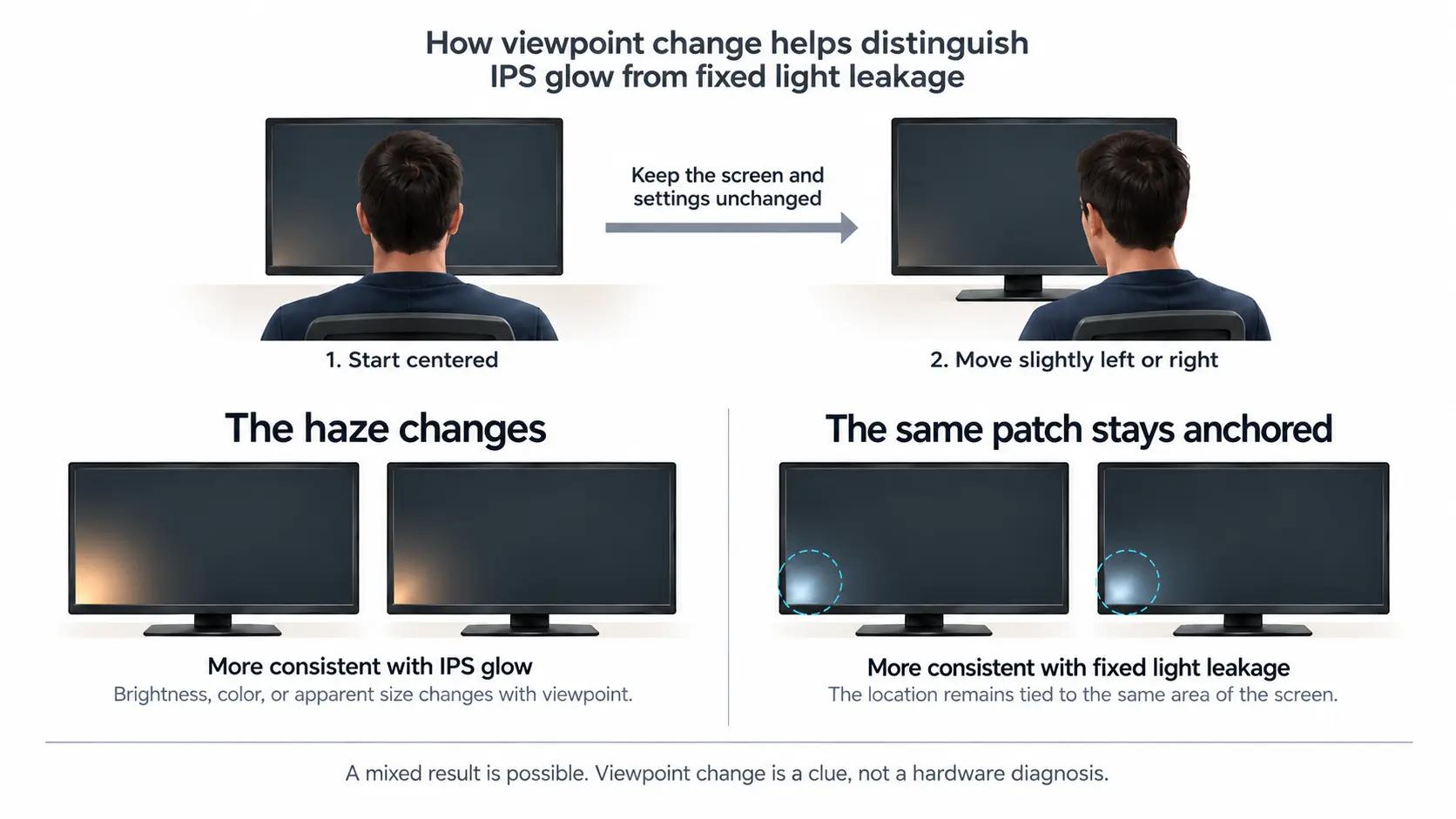

Quick identification tip: Change your viewing angle. If the glow moves or changes intensity, you're seeing IPS glow (normal). If the bright spots stay in the same location regardless of angle, that's backlight bleed (defect). Clouding appears on gray backgrounds across the center screen, not just edges.
Not all backlight bleed is equal. The acceptability depends on severity, location, and your use case.
Barely visible glow at corners when brightness is maxed in a pitch-black room. Invisible during normal content viewing. This is the reality of IPS panel construction and affects virtually all IPS monitors to some degree. Not a defect.
Noticeable during dark movie scenes or gaming with dark environments. Creates visible bright patches that distract from content. Whether this warrants a return depends on your tolerance, use case (movie watching vs office work), and the return window availability.
Large, bright patches visible even with moderate room lighting. Intrudes into content viewing area, making dark scenes unwatchable. This level of bleed indicates assembly defects and justifies warranty claims or returns. Document with photos for strongest case.
Reality check: If you're testing your monitor nose-to-screen in a dark room at 100% brightness, you'll find something to complain about on virtually any IPS panel. Test from your normal viewing distance with realistic content to assess whether the bleed actually affects your experience.
Understanding root causes helps you protect your monitors and know when bleed indicates manufacturing defects versus normal panel characteristics.
Most backlight bleed originates during panel assembly. LCD displays consist of multiple layers—backlight panel, diffuser sheets, liquid crystal layer, color filters, polarizers—all sandwiched between a bezel and back housing. Even microns of uneven pressure during assembly create light leakage points.
Budget monitors have looser manufacturing tolerances. Assembly line workers tighten bezels to "good enough" standards, not perfection. Premium monitors (Dell UltraSharp, ASUS ProArt) employ tighter quality control—they reject panels with visible bleed, while budget brands ship them.
Some bleed is inevitable at scale. Manufacturing millions of large-format displays (27"+) with zero pressure variance is economically unfeasible for sub-$500 monitors. This is why minimal corner bleed is so common—it's the tolerance trade-off for affordable IPS panels.
IPS panels are inherently more prone to backlight bleed than VA or TN panels due to their construction. IPS technology requires liquid crystals to rotate in-plane (parallel to the screen surface), which demands higher backlight intensity and wider apertures in the sub-pixel structure to maintain brightness.
Higher backlight intensity means any assembly imperfection becomes visible—the brighter backlight shines through pressure points more obviously. VA panels use vertical crystal alignment requiring less backlight power, so the same assembly tolerance creates less visible bleed. TN panels have the simplest structure and lowest bleed rates.
This is the trade-off: IPS gives you superior color accuracy, wide viewing angles, and consistent brightness, but you accept slightly higher bleed potential. VA offers better contrast and less bleed but narrow viewing angles. TN has minimal bleed but poor colors and angles. Choose your priority.
Shipping damage is a major cause of sudden-onset backlight bleed. Monitors that survive factory quality control often develop bleed during rough handling—dropped packages, compressed boxes, or inadequate padding allow the panel to flex. This flexing warps the bezel frame slightly, creating permanent pressure points.
User-induced pressure matters too. Leaning objects against screens, overtightening VESA mount screws, or even aggressive screen cleaning (pressing too hard) can create bleed. Laptop users frequently cause bleed by closing the lid with USB drives, pens, or other objects on the keyboard—the pressure transfers directly to the LCD panel behind the thin lid.
If backlight bleed appears suddenly after moving a monitor or traveling with a laptop, physical damage is the likely culprit. This type of bleed often manifests as asymmetric patterns—one corner much worse than others—rather than the symmetric minimal corner glow from manufacturing.
Temperature cycling causes panel expansion and contraction. LCD panels consist of materials with different thermal expansion rates—glass substrates, plastic diffusers, metal bezels. When exposed to temperature swings (cold room to direct sunlight, or vice versa), these materials expand/contract at different rates, creating internal stress.
Over years, adhesive layers between panel components degrade. The optical glue bonding diffuser sheets weakens, allowing layers to separate microscopically. This separation creates air gaps where light scatters, appearing as bleed. Age-related bleed typically develops gradually—monitors with zero bleed when new show minimal bleed after 3-5 years.
Extreme environments accelerate degradation. Monitors in hot attics, cold garages, or near windows with direct sun exposure age faster than climate-controlled office monitors. High humidity also affects adhesive longevity, which is why tropical climates see more age-related bleed than temperate regions.
The same technology that makes IPS panels superior for color work also makes them more prone to visible backlight bleed. It's a fundamental physics trade-off.
Panel type comparison: VA panels have better backlight uniformity due to vertical crystal alignment and higher native contrast (less backlight needed). TN panels have simplest structure with minimal layers, resulting in least bleed. But both sacrifice color accuracy and viewing angles that make IPS preferred for creative work.
If backlight uniformity is your top priority (movie watching in dark rooms), consider VA panels. For color-critical work, accept that minimal IPS bleed is the price of admission.
While manufacturing-related bleed is unavoidable, you can significantly reduce the risk of damage-induced backlight bleed through careful handling and maintenance.
Always transport monitors in original packaging with foam inserts. Avoid pressure on the screen during shipping or moving. Lay flat, never stand on edge during transport.
Never press hard on screens, lean objects against displays, or close laptop lids with items on the keyboard. Even brief pressure can create permanent bleed.
Keep monitors in climate-controlled spaces (15-25°C / 59-77°F). Avoid direct sunlight, heaters, or A/C vents. Temperature cycling stresses panel adhesive.
Use monitor stands or VESA mounts rated for your display's weight. Ensure even weight distribution. Don't overtighten VESA screws—they can warp the panel frame.
Use surge protectors to prevent power fluctuations. While backlight bleed is mechanical, unstable power can stress backlight components over time.
Never forcefully adjust bezels or attempt DIY repairs unless prepared for consequences. Bezel pressure adjustments can create more bleed than they fix.
Even with perfect care, some backlight bleed is inherent to affordable IPS panels. Accept these realities:
Accurate testing requires specific conditions. Follow these steps to distinguish real backlight bleed from IPS glow and avoid false positives.
Testing environment is critical for accurate results
Proper settings reveal backlight bleed accurately
Use fullscreen black patterns for accurate detection
Photo documentation is crucial for warranty claims
Once you've tested, use this framework to determine if your backlight bleed is within normal tolerances or requires action.
Barely visible glow at corners in pitch-black room
Only visible at 100% brightness in complete darkness
Normal for IPS panels—not a defect
Noticeable bright patches during dark content
Visible during dark movie scenes or gaming
Borderline—assess tolerance and use case
Large bright spots intruding into content area
Visible even with moderate room lighting
Warranty claim or return strongly recommended
If you plan to file a warranty claim or return your monitor, proper photo documentation strengthens your case significantly.
Smartphone users: Most modern phones (iPhone 11+, Samsung S20+) have manual/pro camera modes. Use these settings: ISO 200-400, shutter speed 1-2s, focus lock. Lean the phone against something stable for sharp shots—hand-holding at slow shutter speeds causes blur.
These errors lead to inaccurate results or mistaking normal IPS characteristics for defects.
Ambient light masks bleed completely. You can have severe bleed that's invisible in a lit room. Dark room testing is mandatory.
Backlight bleed requires maximum brightness to detect. At 50% brightness, severe bleed might look acceptable.
IPS glow changes with viewing angle, bleed doesn't. Move your head—if the glow moves, it's IPS glow (normal, not fixable).
Unrealistic viewing distance exaggerates every imperfection. Test from where you'll actually sit (2-3 feet for monitors).
Dust, fingerprints, or smudges look like bright spots on black screens. Clean your display thoroughly before testing.
Your eyes need 2-3 minutes to adapt to darkness. Test immediately and you'll miss subtle bleed or overestimate severity.
Remember: If you have to create extreme conditions (pitch black room, 100% brightness, nose to screen) to see the bleed, it probably won't affect your real-world usage. Test realistically—sit where you normally sit, use your typical brightness, and ask "does this bother me during actual content?"
Backlight bleed expectations and tolerance vary significantly by monitor type, price point, and intended use. Here's what's "normal" for each category.
Moderate - IPS panels prioritize speed and color over bleed control
Fast IPS and Nano IPS panels use thinner liquid crystal layers for faster response times, which makes pressure sensitivity worse
Medium - Dark game genres (Resident Evil, Dead Space) show bleed obviously, but bright esports titles hide it
Higher - More edges and corners create more potential bleed points
Larger panel surface area, longer edge lengths, and curved panel stress create more assembly challenges
High - The immersive benefits usually outweigh minimal corner bleed. Severe edge bleed is still worth returning.
Moderate - Higher pixel density makes minimal bleed less noticeable
More pixels in same space means each bleed spot affects smaller portion of viewing area
Medium-High - Pixel density helps mask bleed during normal use. Noticeable in pure black screens but invisible during content.
Lower severity - Smaller panels have less bleed than desktop monitors
Smaller surface area (13-17") means less room for pressure variation, plus integrated design is more rigid
High - Smaller screen size means bleed less distracting. Most users adapt quickly to minimal laptop screen bleed.
Higher - Cost savings come from looser QC and assembly tolerances
Budget manufacturing accepts panels premium brands reject, faster assembly times create pressure variance
Very High - If you paid $250, don't expect $800 monitor quality. Mild corner bleed is expected and acceptable.
Minimal - Premium QC rejects panels with visible bleed
Stricter manufacturing standards, hand-calibrated panels, multi-stage testing
Very Low - You paid premium prices for premium quality. Even minimal bleed warrants exchange within return window.
The underlying panel technology fundamentally determines backlight bleed susceptibility. Understanding these trade-offs helps set realistic expectations.
| Panel Type | Bleed Susceptibility | Why | Strengths | Weaknesses |
|---|---|---|---|---|
| IPS | Highest | Requires brightest backlight, complex layer stack, pressure-sensitive | Best color accuracy, widest viewing angles | IPS glow, moderate contrast, bleed-prone |
| VA | Lower | Vertical alignment requires less backlight intensity, better uniformity | Excellent contrast (3000:1+), deep blacks, minimal bleed | Narrow viewing angles, color shift at angles |
| TN | Lowest | Simplest panel construction, fewest layers, minimal assembly complexity | Fastest response time, cheapest, minimal bleed | Poor colors, worst viewing angles, washed-out blacks |
Color accuracy, design work, photo/video editing, wide viewing angles matter more than backlight uniformity. Accept minimal bleed as normal.
Movie watching, deep blacks, contrast matter most. Better backlight uniformity but colors/angles weaker than IPS. Good middle ground.
Competitive gaming, fastest response times, budget priority. Minimal bleed but significant color/angle compromises. Dying technology.
Market reality: IPS dominates mid-to-high-end monitors (60%+ market share) because creatives, designers, and gamers prioritize color/angles over perfect uniformity. VA serves movie enthusiasts and contrast seekers. TN is relegated to budget esports monitors. If backlight uniformity is your #1 priority, VA is the best choice—but you'll sacrifice IPS's superior color accuracy.
Test results mean different things depending on severity, location, and your intended use. Use this guide to determine if your backlight bleed warrants action.
No visible bright spots, or tiny glow barely visible at corners in pitch-black room at max brightness
Your monitor is performing as expected for an IPS panel. This is the best-case scenario.
Enjoy your monitor—no action needed.
Noticeable bright patches during dark content, visible in darkroom but not with room lighting
Your monitor has backlight bleed that some users find acceptable, others don't. Decision depends on use case.
Assess tolerance based on content type and return window.
Large bright spots visible even with moderate room lighting, intruding into content viewing area
This level of bleed indicates manufacturing defects or assembly issues. Definitely worth pursuing warranty.
Document with photos and pursue warranty claim or return.
Follow this decision tree to determine whether your backlight bleed justifies a return or warranty claim.
Use the test results above. Minimal = likely acceptable. Moderate = borderline. Severe = return/claim.
Where is the bleed? One corner vs multiple edges makes a big difference.
What content will you consume? Gaming, movies, office work?
Minimal bleed + any use case, OR Moderate bleed + high tolerance use case + already adapted to it
Moderate bleed + low tolerance use case + within return window (14-30 days)
Severe bleed + any use case, especially if premium monitor ($500+) or within return window
Beyond severity, these factors significantly impact whether backlight bleed bothers you in real-world use.
Critical factor
Determines tolerance
Sets expectations
Affects recourse options
Unlike dead pixels (objectively measureable defects), backlight bleed tolerance varies dramatically between users. What bothers one person is invisible to another. This subjectivity makes warranty claims harder but also means you shouldn't stress if online forums make your "moderate" bleed sound catastrophic.
Pro tip: Live with your monitor for 3-7 days doing normal tasks before deciding. Initial hyperfocus on bleed fades as your brain adapts. If it still bothers you after a week of real-world use, return it. If you forget about it during actual content consumption, you've adapted successfully.
Unlike stuck pixels (electrical issue, software-fixable), backlight bleed is a mechanical problem requiring physical intervention. Success rates vary widely, and most DIY methods carry significant risk.
This is the critical difference between backlight bleed and stuck pixels. Stuck pixels result from transistor electrical states—software can cycle voltage to unstick them. Backlight bleed results from physical panel pressure, adhesive failure, or bezel warping—no amount of software manipulation can fix mechanical pressure points.
Translation: "Fixing" backlight bleed means physically disassembling your monitor, adjusting bezel pressure, or replacing the panel entirely. There are no software tools, no magic apps, no screen flashing sequences that reduce backlight bleed. Anyone promising software fixes is misinformed.
Overview of available repair approaches, from DIY to professional. Success rates are based on community reports and repair shop data.
| Method | Success Rate | Risk Level | Time | Cost | Warranty |
|---|---|---|---|---|---|
| Panel Pressure Adjustment | 40-60% | Very High | 2-3 hours | DIY / $100-150 professional | Voids warranty |
| Bezel Loosening | 30-50% | High | 30-60 minutes | DIY | Likely voids warranty |
| Electrical Tape Mod | 20-30% | Low | 15-30 minutes | $5 (tape) | Voids warranty |
| Professional Repair | Varies | None | 1-2 weeks | $150-300 | Depends on shop |
| Warranty Replacement | Varies | None | 1-3 weeks | Free (shipping only) | Maintains warranty |
Success rate: 40-60% | Time: 2-3 hours | Voids warranty
The most effective DIY method involves disassembling the monitor to access panel mounting screws. By slightly loosening bezel screws in problem areas, you reduce pressure on the LCD panel, potentially minimizing bleed. This requires complete monitor disassembly, technical skill, and patience.
Recommendation: Only attempt this if monitor is out of warranty, bleed is severe enough to be unusable, and you're comfortable with potential total loss. Watch multiple YouTube tutorials for your specific monitor model first. Have replacement monitor budget ready.
Success rate: 30-50% | Time: 30-60 min | Likely voids warranty
Less invasive than full disassembly. Some monitors have accessible bezel screws hidden under rubber feet or stickers. Loosening these slightly can reduce edge pressure without opening the entire monitor. Lower risk than full panel adjustment, but also lower success rate.
When this works: Bleed caused by overtightened bezels during assembly. You'll know if loosening helps within minutes of adjustment.
When it doesn't: Bleed from internal panel pressure or damaged components. Loosening bezels won't fix these root causes and may introduce panel wobble.
Success rate: 20-30% improvement | Time: 15-30 min | Voids warranty
Cosmetic fix that masks bleed rather than eliminating it. Apply black electrical tape to the inside edges of the bezel (where it meets the panel) to block light leakage. This doesn't fix the root cause but reduces visible glow.
Realistic expectations: 20-30% visual improvement at best. Severe bleed won't be solved by tape. Minimal bleed might become invisible. Requires bezel removal to access edge areas.
Safest DIY option: Low risk of damage, cheap materials, reversible if done carefully. Good learning project before attempting more invasive repairs.
$150-300 | 1-2 weeks
Monitor repair shops can attempt panel adjustments or replace the LCD panel entirely. Costs vary widely based on panel size and availability. Most shops won't guarantee success for bleed reduction (mechanical issue variability).
Reality: For $150-300, you're often better off buying a new monitor (panel lottery for better unit). Professional repair makes sense for premium monitors ($800+) or rare models.
Free (shipping) | 1-3 weeks
Best option if your monitor qualifies. Manufacturer warranty claims for backlight bleed are subjective—severity and photo documentation determine approval. See warranty policies section below for brand-specific thresholds.
Success factors: Severe bleed, good photos, within warranty period, premium monitor line. Moderate bleed on budget monitors often rejected.
These "fixes" circulate in forums but cause more harm than good. Avoid them completely.
Some guides suggest pressing on bleed areas to "massage" them out. This creates dead pixels and worsens bleed by damaging the LCD layers permanently.
If bleed is from pressure, adding more pressure makes it worse, not better. Loosening is the adjustment direction, never tightening.
Heat guns or hair dryers "to soften adhesive" risk permanent LCD damage. Panels have strict temperature tolerances—exceeding them kills the panel entirely.
No software, app, or screen pattern reduces backlight bleed. It's mechanical. Anyone selling software solutions is scamming you.
For many users, accepting minimal backlight bleed is the smartest choice—especially when the alternative is risky DIY repairs or warranty roulette.
User experience data: Community surveys show 70%+ of users with minimal IPS bleed stop noticing it after 2-3 weeks of normal use. Your brain's visual cortex adapts to consistent patterns, filtering them out. The exception: If you constantly test or think about it, adaptation fails—this is why obsessing over bleed makes it seem worse over time.
Unlike dead pixels with clear ISO standards, backlight bleed policies are subjective and vary by manufacturer. Here's what to expect when filing warranty claims.
Most manufacturers don't publish specific backlight bleed thresholds like they do for dead pixels (ISO 13406-2 standards). Backlight bleed assessment is subjective—support reps evaluate photos and determine if the bleed is "excessive" for that model and price point.
Key factor: Photo quality matters enormously. Poor documentation (overexposed photos, ambient light contamination) gets rejected even for legitimate severe bleed. Professional documentation significantly improves approval odds.
Premium Panel Guarantee (select models)
Case-by-case assessment, photo documentation required
UltraSharp models have better coverage than standard monitors. Premium Panel Guarantee covers even minor bright spots on select high-end displays.
Subjective evaluation by support
No specific bleed threshold published
ROG gaming monitors may have more lenient policies than standard models. Success depends heavily on photo quality and severity documentation.
Severe cases only
Significant bleed affecting usability
As IPS panel manufacturer, LG expects minimal bleed on their panels. Moderate bleed often rejected unless clearly excessive for the model.
Standard ISO tolerances
Varies by panel type (VA vs QLED)
VA panels have less bleed than IPS—Samsung may hold tighter standards. Curved monitors have different expectations than flat panels.
Photo-based assessment
Case-by-case, documentation critical
Professional PhotoVue and SW-series have stricter standards than gaming monitors. Detailed photos with comparison shots improve claim success.
Standard warranty terms
Moderate to severe bleed
Budget-friendly brand accepts more bleed than premium manufacturers. Predator gaming line may have slightly better policies than standard models.
Support ticket evaluation
Subjective, varies by region
Gaming monitors with fast IPS panels—some bleed expected. Community reports suggest case-by-case approval based on severity and photos.
Depends on product line
Professional ColorPro stricter than budget
Professional displays held to higher standards. Budget monitors follow standard ISO tolerances with more lenient bleed acceptance.
Policy accuracy disclaimer: Manufacturer warranty policies change over time and vary by region. The information above is based on community reports and public policy documents as of 2025. Always verify current policies with manufacturer support before purchasing or filing claims.
Proper documentation is the difference between claim approval and rejection. Follow these guidelines to maximize success.
Pitch-black room, no ambient light sources
Turn off all lights, close blinds/curtains, disable LED indicators on other devices. Even small light sources contaminate results.
ISO 100-400, 1-2 second exposure, manual focus
Disable auto mode completely. Low ISO reduces noise. 1-2s exposure captures bleed without overexposing. Focus manually on screen.
Straight-on plus slight angles
Primary photo straight-on from normal viewing distance. Secondary photos from 15-30° angles to show bleed isn't just IPS glow.
If possible, photograph "normal" monitor nearby
Side-by-side comparison with another monitor (even different model) helps support reps visualize severity vs expected levels.
Include entire screen plus bezels in frame
Frame should show full monitor with bezels for context. Don't zoom in on bleed spots—show overall panel uniformity.
Photo during actual content use
Supplement test photos with dark movie scene or game screenshot showing how bleed affects real viewing experience.
If your monitor is within the retailer's return window (14-30 days), that's almost always preferable to warranty claims.
Recommended for: Any bleed that bothers you during normal use, even if "technically acceptable."
Use when: Outside return window, bleed is severe and well-documented, no other recourse available.
Don't wait until day 29 to test your monitor. Run backlight bleed tests within the first 3-7 days of delivery. If you find moderate bleed, you have time to research the model's typical bleed levels and decide if yours is acceptable or worth exchanging for a better panel lottery result.
If you must file a warranty claim (outside return window), these strategies improve approval odds.
Take photos when you first notice the bleed. If it worsens over time, progressive documentation shows it's not manufacturing-normal but degrading.
Describe bleed objectively: "Severe light leakage from bottom-left corner measuring approximately 2 inches across, visible at 50% brightness during normal use." Avoid emotional language like "completely unusable."
For professional monitors: "Bleed interferes with color-critical photo editing work." For gaming: "Bleed creates bright patches during dark game scenes, affecting competitive gameplay."
Research your model online: "Other users of [Model X] report minimal corner glow. My unit has severe edge bleed inconsistent with typical [Model X] quality."
First rejection doesn't mean final rejection. Politely ask for escalation to senior support or supervisors. Some claims get approved on second review with same documentation.
If manufacturer definitively rejects and you're outside return window, DIY fixes or living with it become your options. Multiple claim attempts rarely change outcomes.
Success rate reality: Community data suggests ~40-60% approval rate for well-documented severe backlight bleed claims. Moderate bleed has ~10-20% approval rate. Minimal bleed is almost never approved. Premium monitor lines (UltraSharp, ProArt) have higher approval rates than budget models.
Understanding LCD backlight architecture explains why some monitors are more prone to bleed than others. This technical deep dive covers edge-lit, direct-lit, and FALD systems.
LEDs positioned along one or more edges, light spreads via guide plate
Cost
Low
Thickness
Thinnest (5-10mm)
Uniformity
Poor to Moderate
Bleed Risk
Highest
LED strips mounted at panel edges (typically bottom or sides) emit light into a transparent acrylic light guide plate. Micro-structures in the guide plate scatter light upward through LCD layers. Edge placement creates uneven pressure distribution.
LED array positioned behind entire panel for even distribution
Cost
Medium
Thickness
Thicker (15-25mm)
Uniformity
Good
Bleed Risk
Moderate
Grid of LEDs mounted across the entire back panel surface. Light travels through multiple diffuser layers before reaching the LCD layer. More even distribution reduces edge pressure concentration but increases panel thickness.
Direct-lit with independently controlled zones for precision dimming
Cost
High
Thickness
Thickest (20-30mm)
Uniformity
Excellent
Bleed Risk
Lowest
Direct-lit LED array divided into zones (32-1000+ depending on model) controlled independently. Dark screen areas dim corresponding zones, reducing backlight leakage. Advanced controllers prevent zone blooming.
LCD displays are complex sandwiches of multiple layers. Understanding this structure reveals why assembly pressure causes visible light leakage.
LED array (edge-lit or direct-lit) producing white light
Spread light evenly across panel, bonded with optical adhesive
Filters light into single polarization plane
Thin-film transistors control each sub-pixel
Rotates light polarization to control brightness
RGB sub-pixel filters create color
Final polarization filter, bonded to protective glass
Protective layer on premium monitors
IPS technology's superior color and viewing angles come from design choices that make backlight containment harder.
| Feature | IPS | VA |
|---|---|---|
| Bleed Risk | Higher | Lower |
| Color Accuracy | Excellent | Good |
| Viewing Angles | 178°/178° | 130°/160° |
| Contrast | 1000:1 | 3000-5000:1 |
| Best For | Creative work | Movies, gaming |
The fundamental trade-off: IPS panels sacrifice backlight uniformity and contrast for superior color reproduction and viewing angles. This isn't a flaw—it's an engineering decision. VA panels prioritize contrast and uniformity but compromise colors and angles. Your panel choice depends on whether color accuracy (IPS) or backlight uniformity (VA) matters more for your use case.
Emerging backlight technologies promise to minimize or eliminate backlight bleed entirely.
FALD systems using thousands of tiny LEDs (0.2mm) instead of traditional LEDs (5mm). More zones = better control = less bleed.
Self-emissive LEDs at pixel level—no backlight needed at all. Like OLED but brighter and longer-lasting.
Get answers to the most frequently asked questions about backlight bleed, IPS glow, testing methodology, warranty policies, and repair options.
Still have questions? The information above covers the most common scenarios, but every situation is unique. Review our detailed guides above for in-depth explanations of backlight bleed causes, testing methodology, repair options, and warranty policies.
